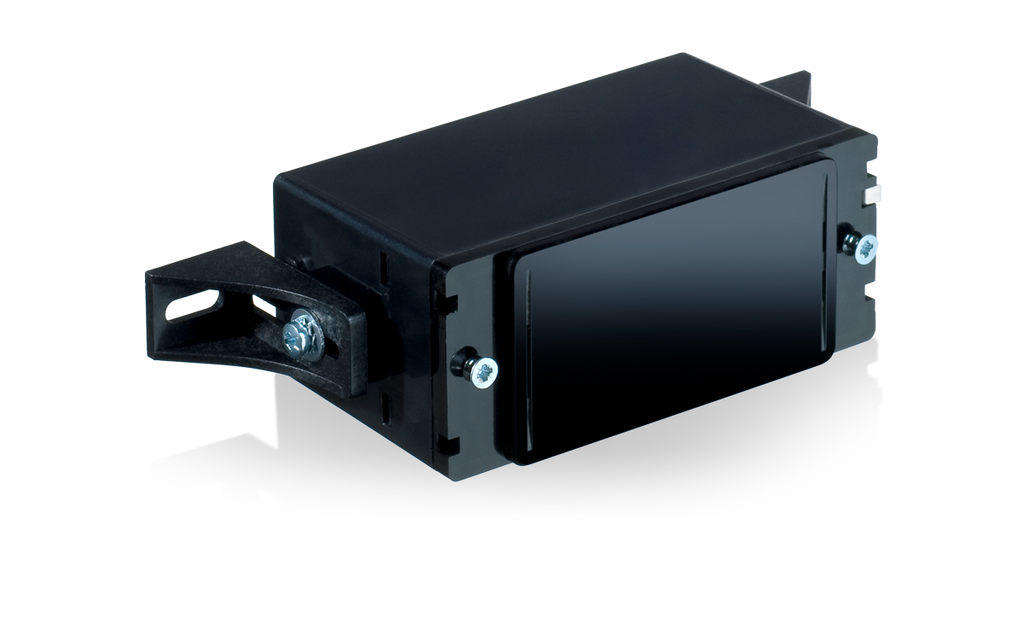

RS-15

Opening and presence sensor for interior train doors

Technology: Active infrared
Colours:
  • rs-15-top-web
RS-15
Get in touch

Description

Opening and presence sensor for interior train doors

Sensor with combined functions for internal doors, the RS-15 is designed to open doors when needed and keep them open in case of presence in the threshold for the passenger comfort and safety. Very flexible detection area thanks to a matrix of 3 × 5 configurable spots with a typical detection area of 1.2 m × 1 m at 2.2 m mounting height.

Download the commercial sheet

Features

  • Flexible detection area

    Based on the 15 available spots, 9 different shapes of detection areas are available as presettings to cover different types of platforms, entrance areas, aisles, etc.

  • Combined functions

    Motion and presence detection in 1 sensor

  • Compact design

    Compact housing, conceived for every train design with a focus on aesthetics.

  • Easy installation

    Tilt angle accessible even when sensor is recessed and configurable parameters adjustable by remote control.
