IXIO-D

Opening and safety sensor for automatic sliding doors

Technology: Radar & Active Infrared
Colours:
ixio-d-3-4-web
Full video

Description

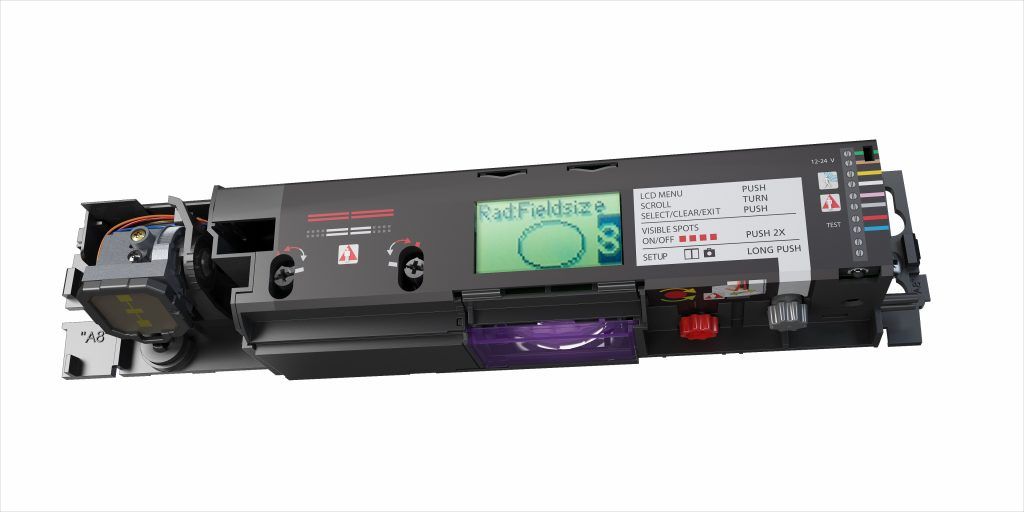

Opening and safety sensor for automatic sliding doors

The IXIO-D is a combined technology sensor, opening and securing automatic sliding doors across the world since 2012. Artek inside offers a comfortable opening experience and the infrared curtains protect people from any contact with the doors. The IXIO-D secures the leading edge and door threshold during closing. Combined with the IXIO-S for safety during opening, it offers a complete solution for sliding doors, compliant with the EN 16005 and DIN 18650 safety standards.

Features

  • Comfortable opening

    Artek inside, developed and produced by BEA, takes radar technology to the next level. It inherits the stability and reliability of our radar sensors, opening doors only when needed.

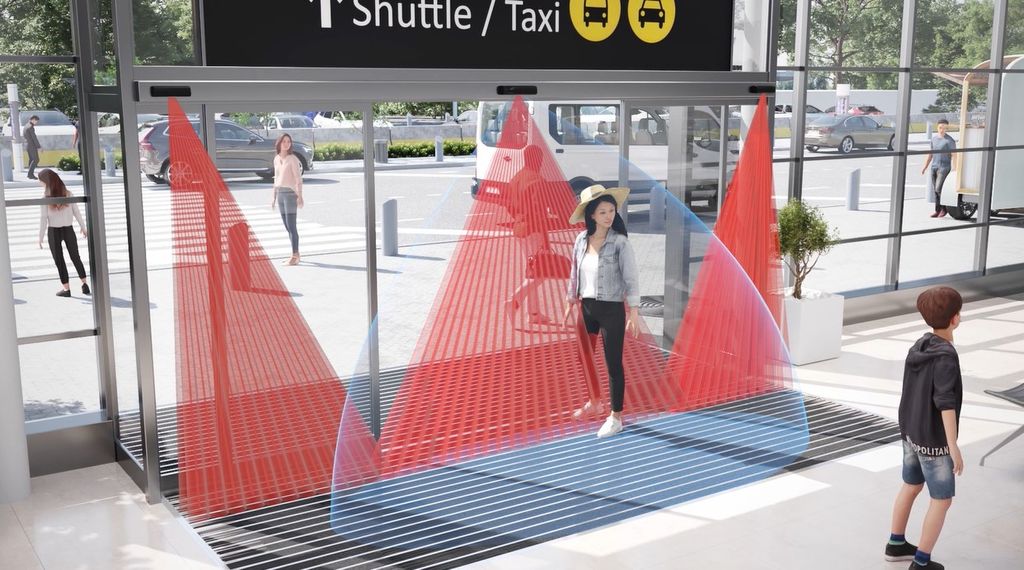

  • Reliable safety

    The tridimensional safety field is composed of high-density infrared curtains, protecting users from any contact with the doors. The flexible infrared field can be adapted to all types of sliding doors and is stable in all surroundings and weather conditions.

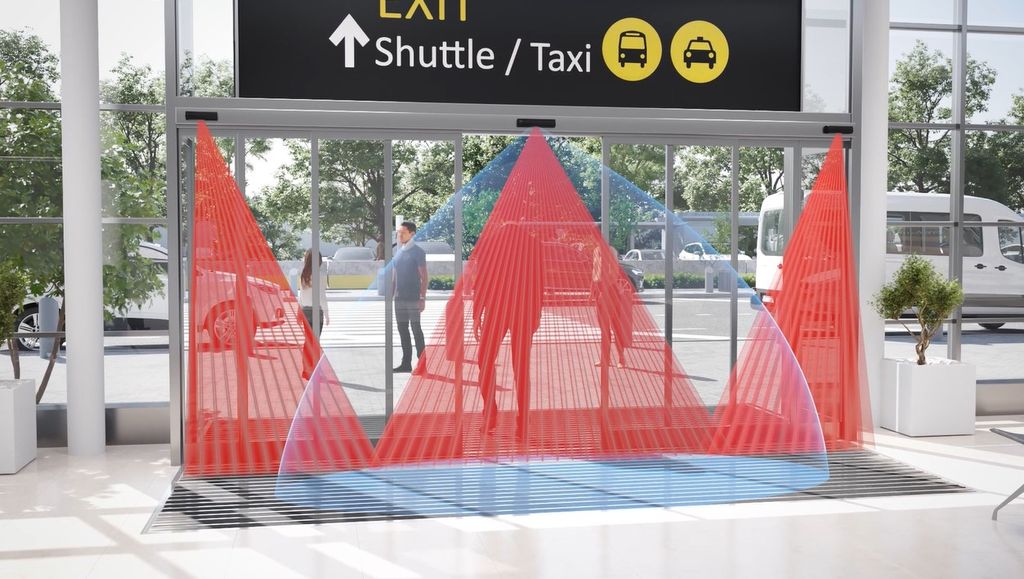

  • Energy savings

    Thanks to the unidirectionality of the radar field, the door closes sooner and is more energy efficient. Rejection of cross-traffic is also optimized to reduce unwanted openings caused by passing pedestrians.

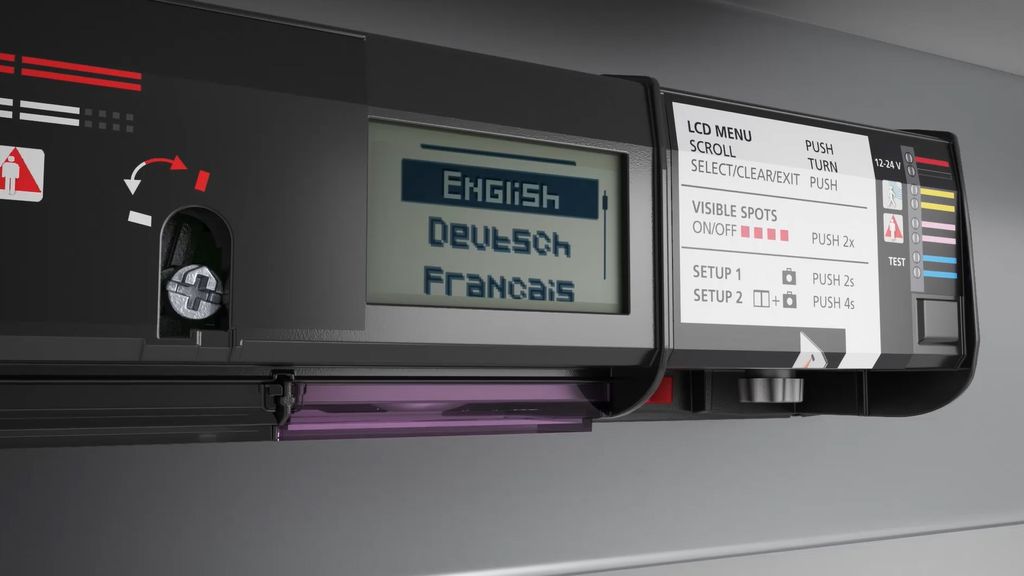

  • Intuitive installation

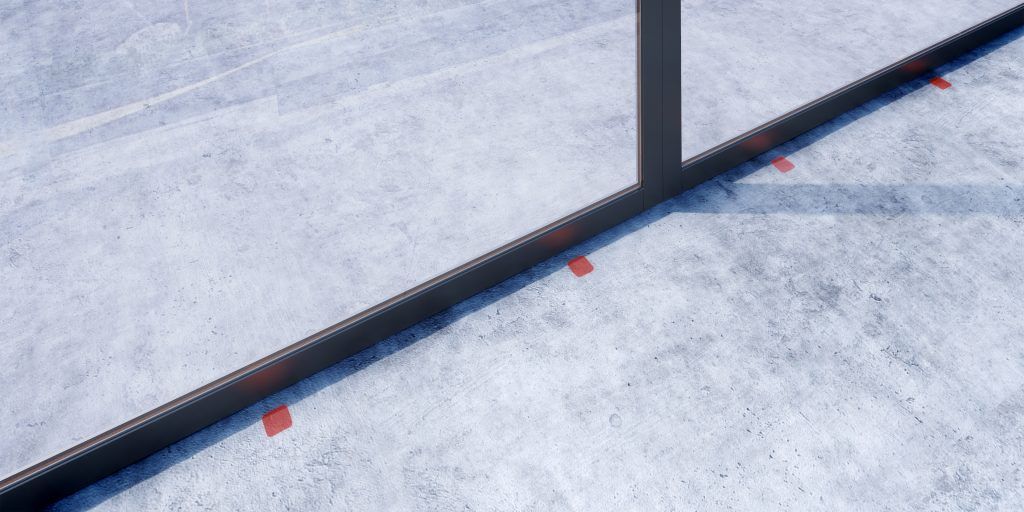

    Thanks to the multilingual LCD screen, configuration of the sensor can be done in just a few clicks. 4 visible spots help adjust the angle of the infrared curtain.

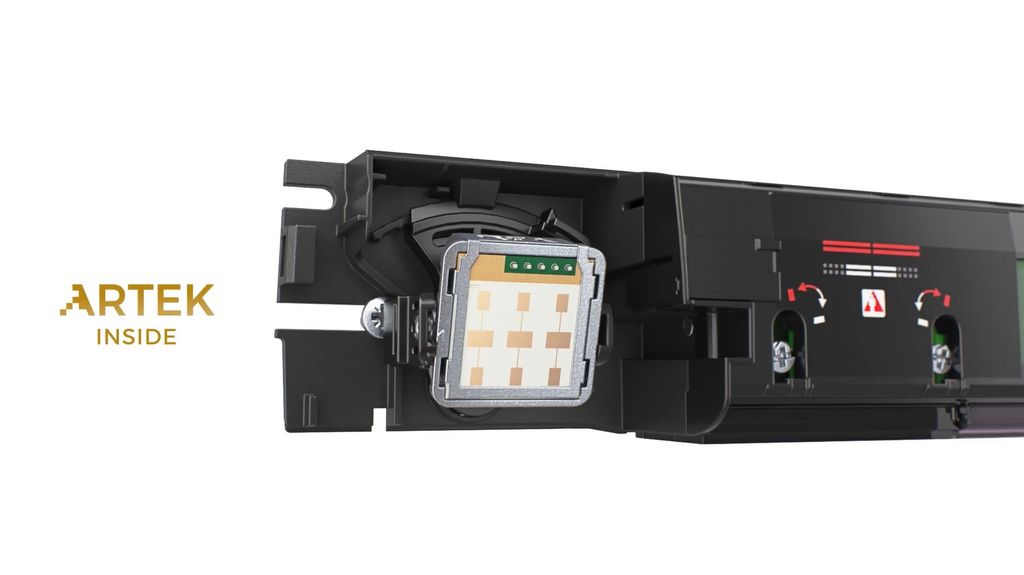

  • ARTEK INSIDE, MADE BY BEA WITH PASSION

    Many hours of research, development and testing have been invested to create and develop the Artek technology. Thanks to the know-how of our engineers, this active digital antenna takes motion detection to the next level. The robust and sustainable design, cutting edge electronics and software allow for precision, reliability, and more flexibility.
    Full video
  • WIRING, MADE EASY

    All IXIO sensors with standard cables will be shipped with the new wiring colour code, which is more universal and user-friendly. Our technical product specialists explain the changes in a short video.
    Full video
  • ZIP DECODER APP

    The BEA DECODER app decodes and generates an overview of all the active parameters and values of the BEA IXIO sensor.
    Get the app
