LZR®- VISIOSCAN NAV

Distance measuring laser scanner for Automatic Forklift & AMR navigation

Technology: Laser

Colours:

LZR®- VISIOSCAN NAV

Get in touch

Full video

Description

Distance measuring laser scanner for Automatic Forklift & AMR navigation

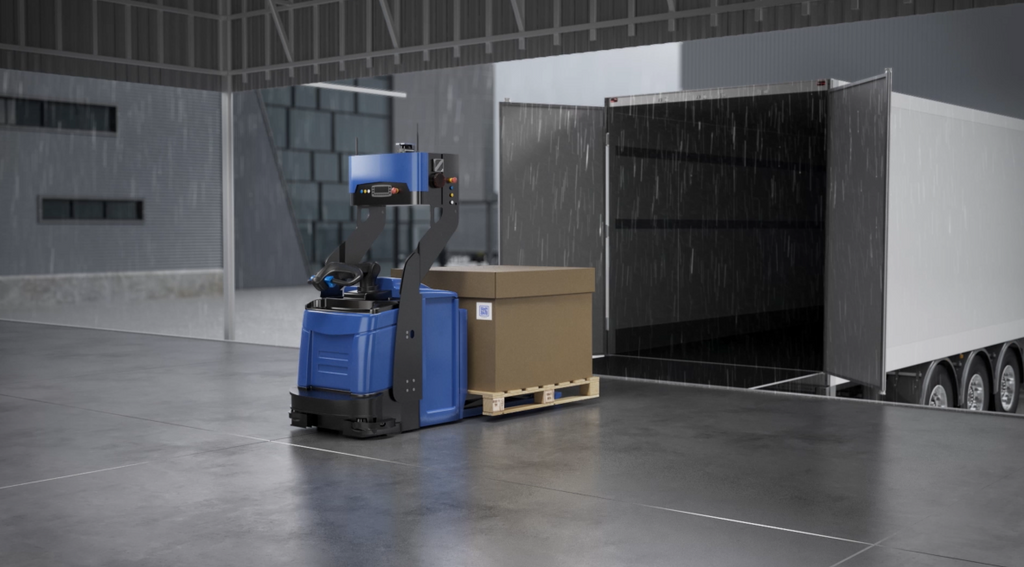

The LZR®-VISIOSCAN NAV is a compact and reliable 2D laser scanner for accurate navigation of automatic forklifts and AMRs, designed and built to work under harsh industrial conditions.
Based on the LASER time-of-flight technology, the scanner scans over the opening angle of 275°, outputting high precision distance measurement data at an angular resolution of up to 0.025° through Ethernet communication, unaffected by environmental disturbances.

Download the commercial sheet

Features

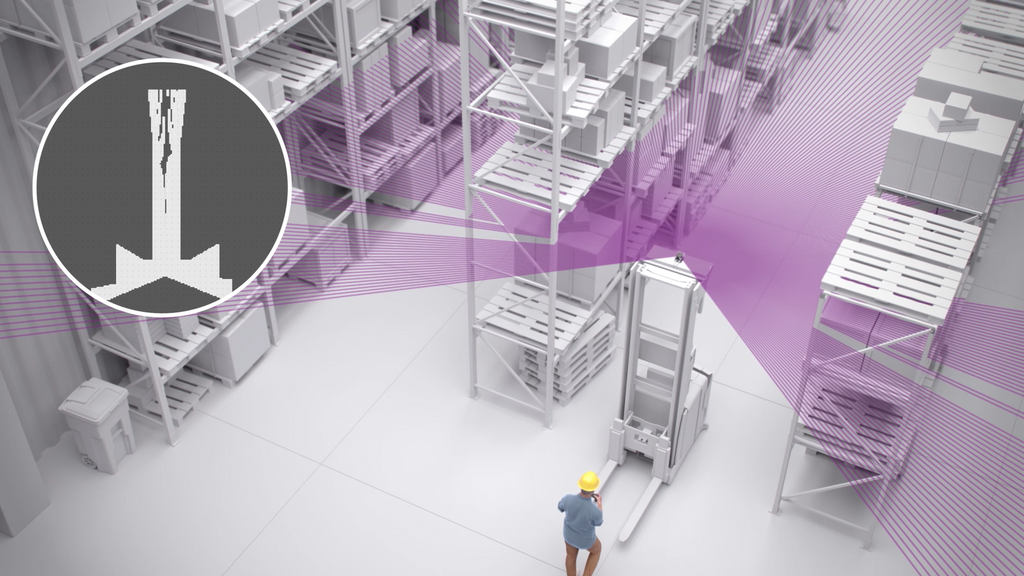

High-resolution or high frequency scanning

Configurable angular resolution of up to 0.025° for a precise mapping of the surroundings, or a scanning frequency of up to 80 Hz for fast and real-time tracking of fast-moving objects.

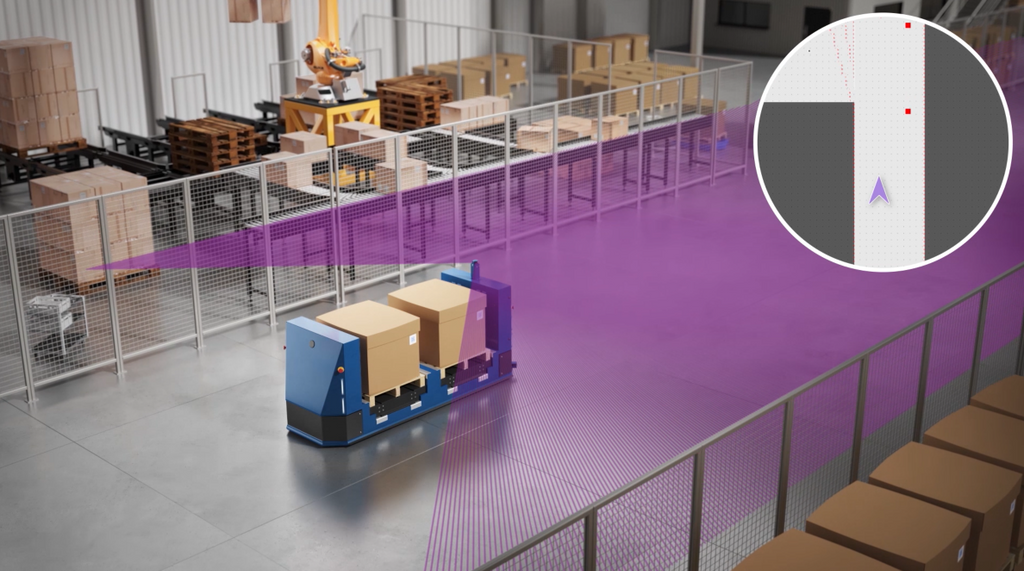

Accurate and reliable distance measurements

High quality mapping is ensured by stable and accurate measurement data thanks to its sytematic error of ± 10mm and statistical error of ≤ 6mm.

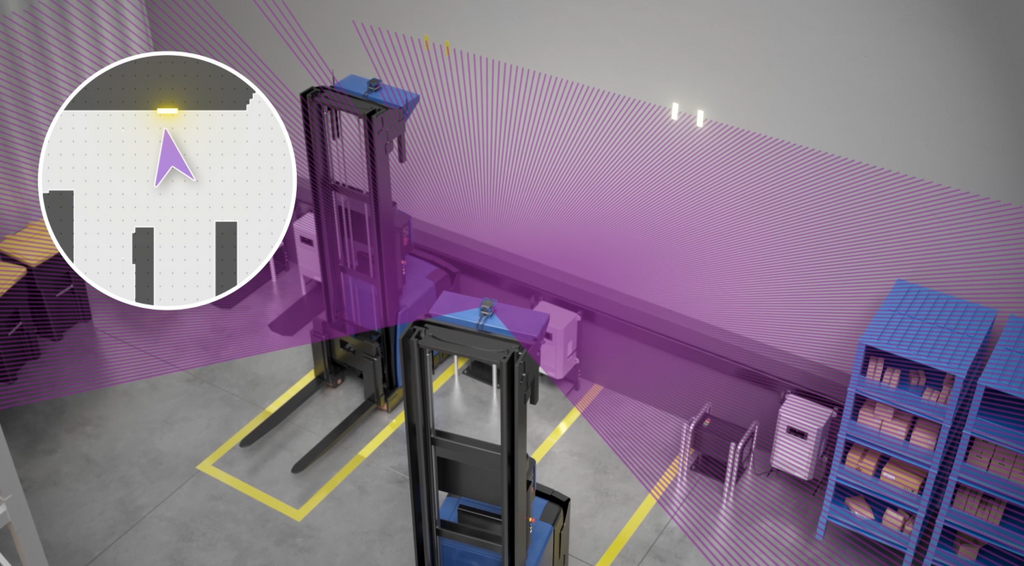

High detection capability

Class leading ability to detect targets of 1.8% reflectivity at 7m and targets of 10% reflectivity at 15m. Amplitude data is available to pinpoint reflectors for docking and precise positioning.
Stable performance in harsh environments

Stable performance is reached even in harsh industrial environments is ensured by the scanner’s wide operating temperature range of -30°C to +60°C, ingress protection enclosure of IP67, and vibration and shock resistance reaching class 5M2.

Robust build, maximizing performance

Engineered for uninterrupted operations from -30°C to +60°C, and withstanding up to 15g shock impact. Delivering high quality measurement data unaffected by harsh industrial environments.
Intelligent window monitoring system

The innovative and intelligent window monitoring system instantly pinpoints the location and severity of any contaminant on the optical window. With user-definable alert thresholds, it enables predictive maintenance scheduling to eliminate unplanned downtime.

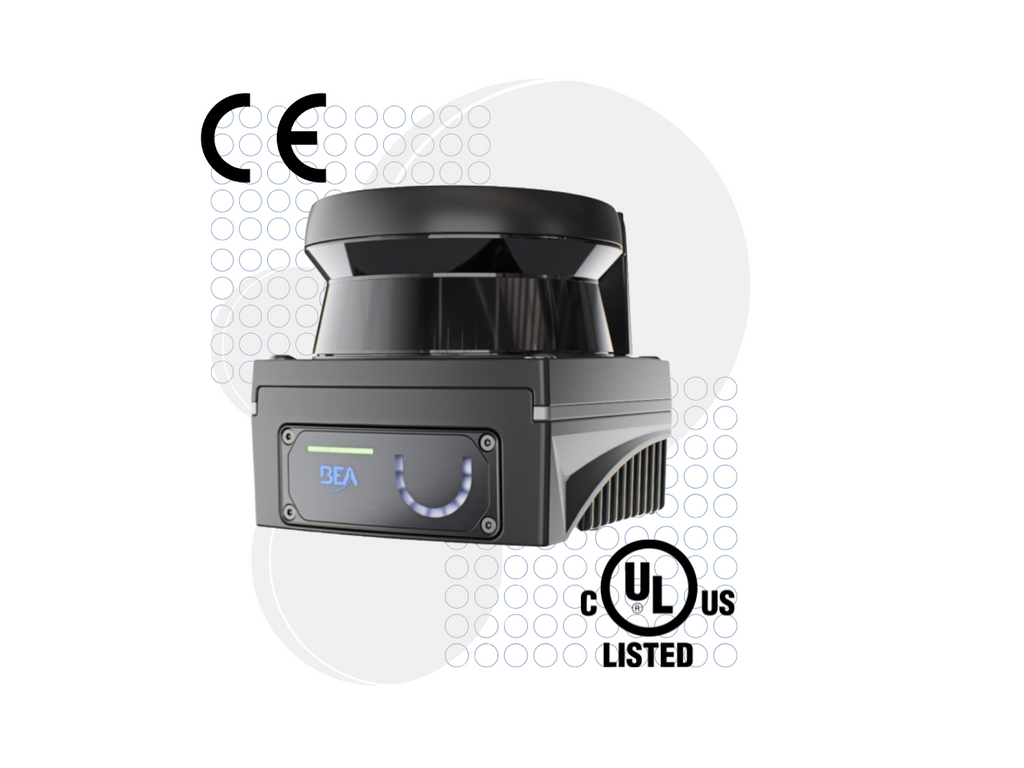

CE compliant and UL listed

CE compliant and UL listed, certified for seamless global market entry, backed by BEA's commercial and technical support stretching across EU, Americas and APAC regions.
