LZR®-FLATSCAN REV-LZ

Opening sensor for revolving door
Technology Laser
Colours:
flatscan-sw-sensor

Description

The LZR®-FLATSCAN REV-LZ is a protective sensor based on laser technology. It's widely used for the door protection on different kinds of revolving door.

Features

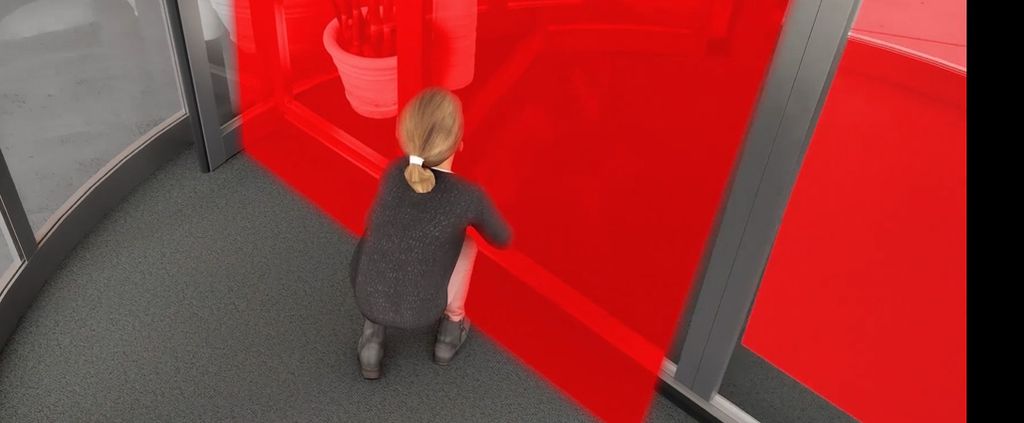

Precise detection field

Measurement points create a safety field to protect people or objects passing through from hitting by the door leaf.

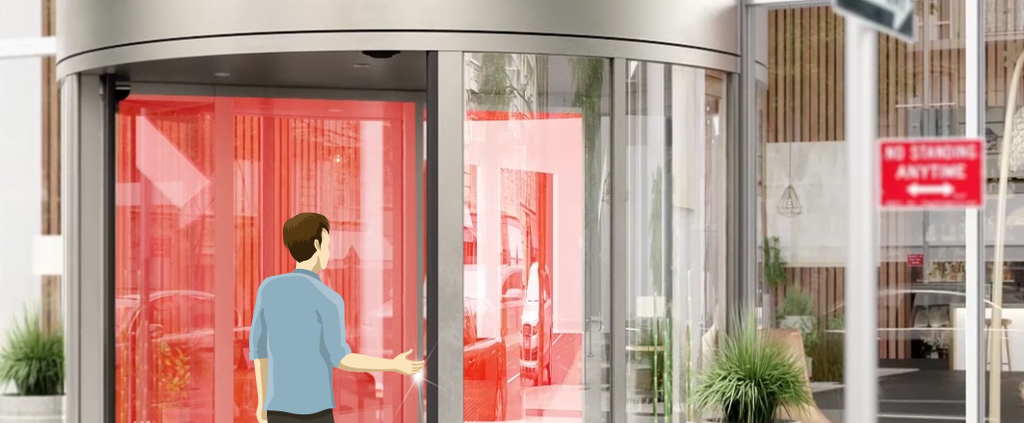

Detection field definition by hand movement

Use the hand to move up and down to easily define the width of the detection field.

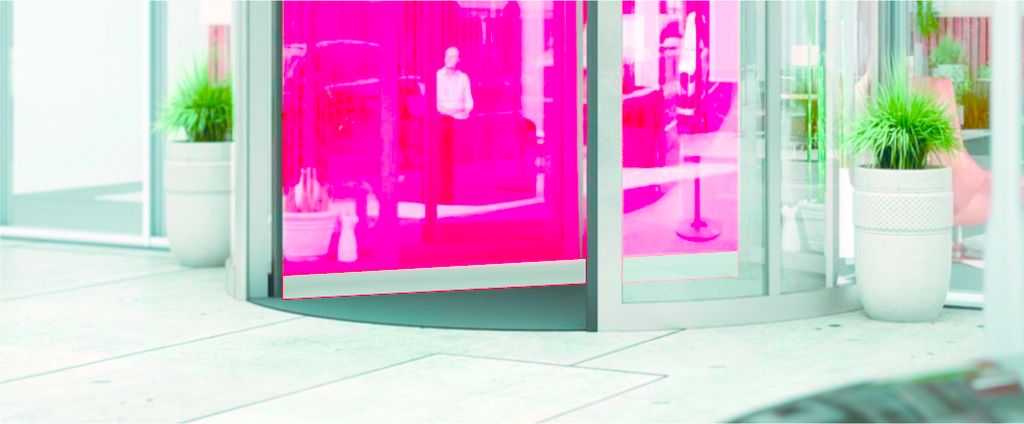

Uncovered zone

Thanks to the high precision of the laser technology, the uncovered zone can be lower than 10cm.

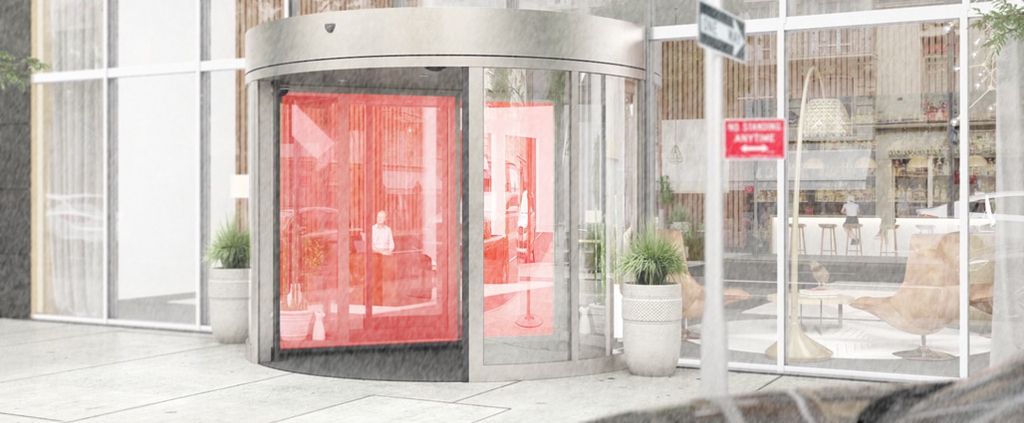

Independent of flooring and surroundings

Laser technology guarantees independence of all type of flooring and the direct surroundings of the door.

Table of specifications

Technology:

LASER scanner, time-of-flight measurement Presence



Detection mode:

Presence



Max. detection range:

4 m (diagonal) with reflectivity of 2% (i.e.: at W = 1.5m -> max. H = 3.7 m)



Opening angle:

90°



Angular resolution:

1.3°



Typ. min. object size:

10 cm @ 4m (in proportion to object distance, DIP 2 = ON)



Testbody:

700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650-1)



Emission characteristics:

IR LASER: wavelength 905 nm; average output power 0.05 mW; CLASS 1 (IEC/EN 60825)



Supply voltage:

12 - 24 V DC ± 15 %



Power consumption:

≤ 2 W



Response Time:

Max. 50 ms



Output:
Max. switching voltage:
Max. switching current:

2 electronic relays (galvanic isolation - polarity free)
42V AC/DC
100 mA



LED-signals:

1 bi-coloured LED: detection/output status



Dimensions:

142 mm (L) × 85 mm (H) × 33 mm (D) ( mounting base + 7 mm )



Material - Colour:

PC/ASA - Black - Aluminum - White



Tilt angles:

+2° to +10° (without mounting base)



Protection degree:

IP54 (IEC/EN 60529)



Temperature range:

-30°C to +60°C if powered



Humidity

0-95 % non-condensing



Vibrations

< 2 G



Compliance

EN 16005 Chapter 4.6.8 (test body CA) DIN 18650-1 Chapter 5.7.4 (test body CA) EN 12978
EN ISO 13849-1 PL “d” / CAT2
IEC/EN 60825-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61508 SIL2



Specifications are subject to changes without prior notice – Measured in specific conditions.

Versions
  • flatscan-sw-web
    LZR®-FLATSCAN REV-LZ kit left+right

    LZR®-FLATSCAN REV-LZ kit left+right

  • flatscan-sw-web
    LZR®-FLATSCAN REV-LZ left

    LZR®-FLATSCAN REV-LZ left

  • flatscan-sw-web
    LZR®-FLATSCAN REV-LZ right

    LZR®-FLATSCAN REV-LZ right

Accessories
  • FLATSCAN RETROFIT INTERFACE

    Retrofit accessory the FLATSCAN

  • LZR-FLATSCAN PROTECTIVE COVER

    Protective cover for the FLATSCAN

  • LZR®-FLATSCAN SW TILTED MOUNTING BASE

    The tilted mounting base adjusts the FLATSCAN SW’s detection field to pivot doors’ larger hinge zones.

  • LZR®-FLATSCAN GDA

    The Glass Door Accessory enables the installation of the FLATSCAN SW on a glass door. It is composed of a flat master-slave cable, stickers and cable covers.

  • remote-control-web
    BEA REMOTE CONTROL

    Universal remote control for the adjustments of our sensors.
