返回至所有产品

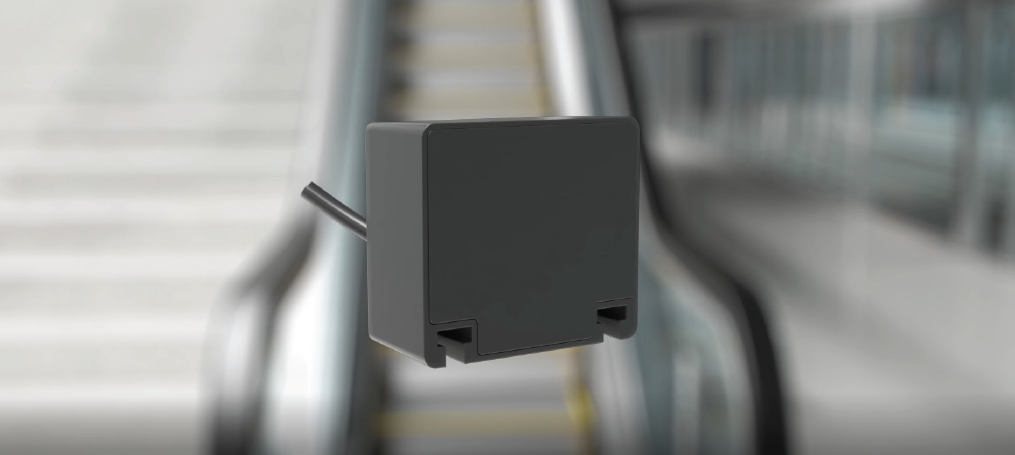

CGS-KF112

启动传感器

技术: 微波
Colours:
CGS-KF112
联系我们

说明

启动传感器

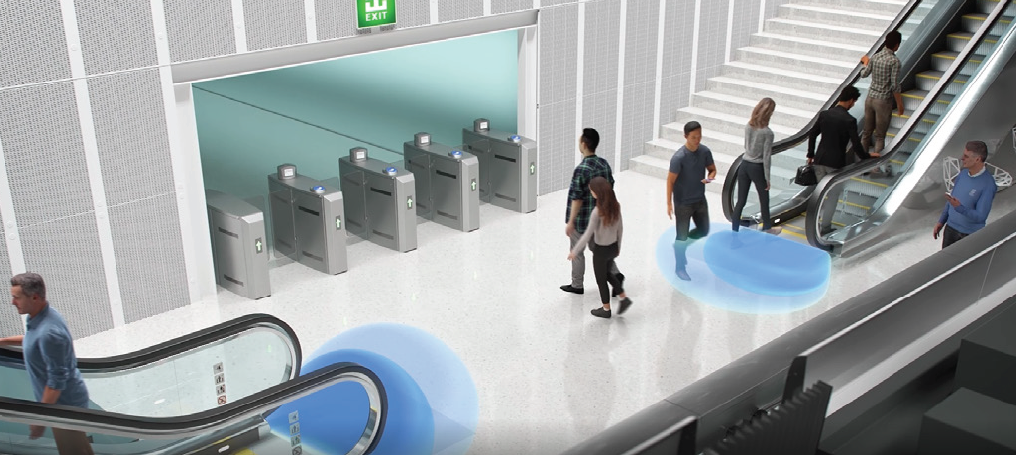

CGS-KF112是一款基于FMCW技术的启动传感器， 多种工作模式和输出信号可选，易于集成。可用于扶梯和自动人行步道的启动以及相关的应用。

下载宣传页

特点

  • 设计精巧

    结构紧凑，防护等级达IP67，使用M12转接头，方便安装和更换。

  • 单侧安装，设置便捷

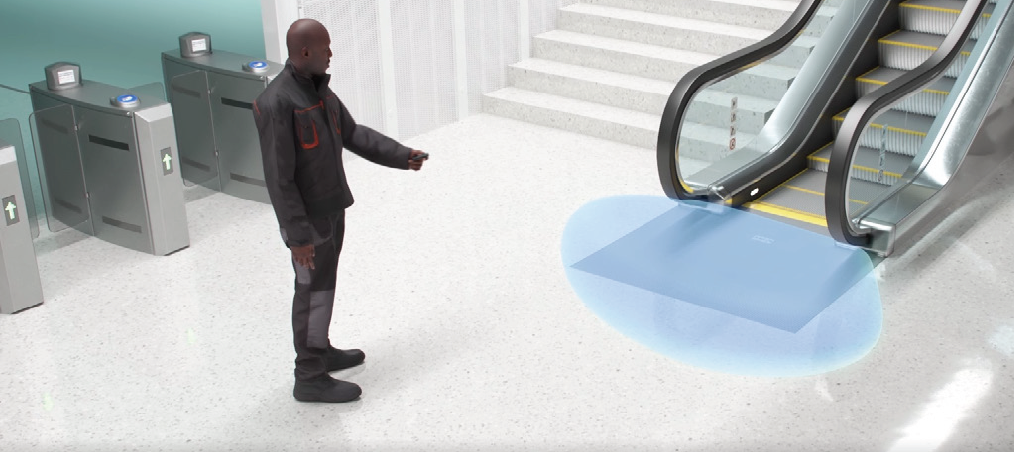

    特制宽区域微波模块，一个扶梯入口只需安装一个传感器, 必要时可用遥控器调试参数，匹配不同检测要求。

  • 不受环境干扰

    FMCW雷达模块和智能的算法可使传感器在各种复杂环境中保持稳定的检测区域。

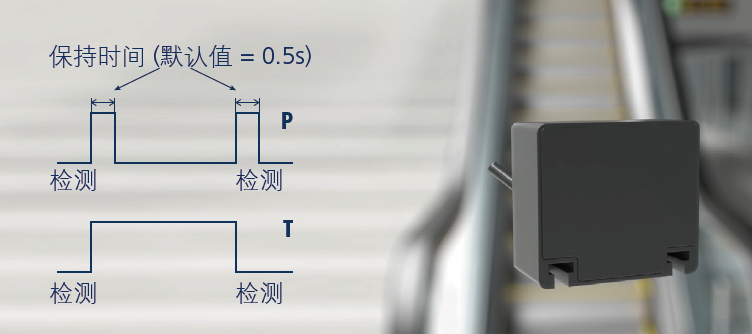

  • 两种输出模式可选

    脉冲模式(P)和触发模式(T)可选，应用更灵活。
